A Common Choice for Global Bottle Packaging Customers: Meto’s Three Mold Export Case Studies
A Common Choice for Global Bottle Packaging Customers: Meto’s Three Mold Export Case Studies
Meto is not the largest mold manufacturer in the world. But among bottle packaging customers who value precision, durability, and responsive support, Meto has become a trusted partner across five continents.
This article presents three real export case studies — for preform molds, bottle cap molds, and blow molds. Each case shows a customer challenge, Meto‘s solution, and measurable results. Together, they explain why global customers continue to choose Meto.
Case Study 1: Preform Mold Export — Vietnam
Customer: Established PET water bottler in Ho Chi Minh City
Annual output: 200+ million bottles
Previous suppliers: Taiwanese and local Vietnamese mold makers
The Challenge:
The customer faced three problems with their existing 24-cavity and 32-cavity preform molds:
Weight variation: Cavity-to-cavity variation of 0.9–1.5% forced them to run preforms 0.6g heavier than necessary — wasting $35,000 in material annually
Short mold life: Refurbishment needed every 1.8–2.2 million cycles, far below the 4+ million cycles they expected
Slow cycles: Cycle times of 10.8–12.5 seconds for an 18g preform limited line output
The Meto Solution:

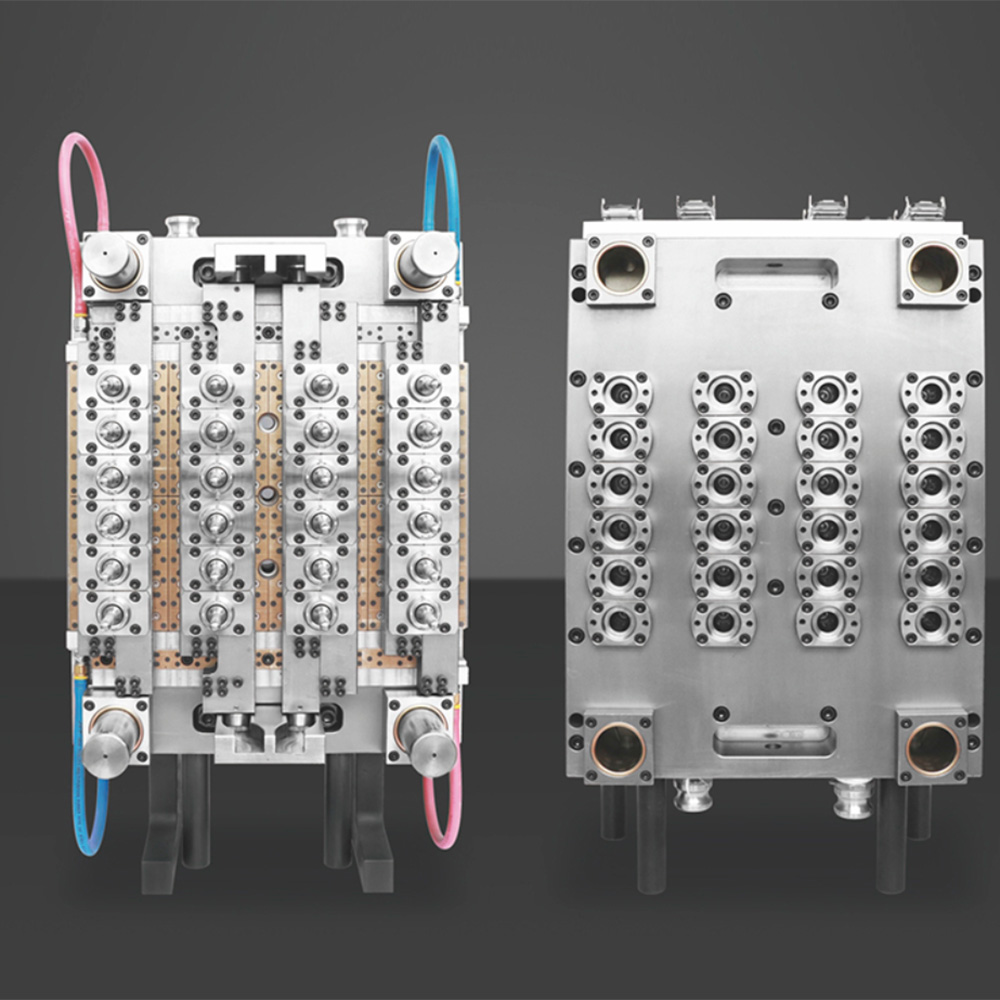

Meto proposed a 32-cavity preform mold with PCO 1810 neck finish for 500ml bottles:
| Feature | Specification |
|---|---|
| Steel | 1.2343 (H11) with in-house vacuum heat treatment (49–51 HRC) |
| Surface treatment | Plasma nitriding (1000+ HV surface hardness) |
| Cooling | Conformal cooling in neck and shoulder zones (CFD-optimized) |
| Hot runner | Valve gate, 32 drops, flow-balanced |
| Target cycle | 8.8 seconds (guaranteed) |
Results after 12 months:
| Metric | Before | Meto Mold | Improvement |
|---|---|---|---|
| Weight variation | 1.2% | 0.35% | 71% reduction |
| Cycle time | 11.6 sec | 8.7 sec | 25% faster |
| Projected mold life | 2.0M cycles | 7M+ cycles | 3.5× longer |
| Reject rate | 1.8% | 0.5% | 72% reduction |
| Annual material savings | — | $42,000 | From lighter average weight |
Customer comment: “The 0.35% weight variation is not a claim — we measured it ourselves.”
Follow-on: Three additional preform molds + spare parts agreement
Case Study 2: Bottle Cap Mold Export — Brazil
Customer: Regional CSD bottler in São Paulo
Annual cap output: 120+ million caps
Previous supplier: European manufacturer (high cost, long lead times)
The Challenge:
The customer was satisfied with European quality but unhappy with:
High mold cost: Each 48-cavity cap mold cost 2.2× Meto‘s quote
Long lead times: 14–16 weeks from order to delivery
Slow spare parts: 4–6 weeks for replacement components from Europe
The Meto Solution:
Meto proposed a 48-cavity injection cap mold for 28mm CSD caps with tamper-evident band:
| Feature | Specification |
|---|---|
| Steel (thread area) | 1.2767 (extreme wear resistance) |
| Steel (core) | 1.2343 |
| Heat treatment | Vacuum heat treated + double tempered |
| Cooling | High-turbulence stainless steel inserts |
| Unscrewing | Hydraulic rack-and-pinion |
Results after 8 months:
| Metric | European Mold | Meto Mold | Improvement |
|---|---|---|---|
| Mold price | Baseline | 48% of European price | 52% lower |
| Lead time | 14–16 weeks | 8 weeks | 43–50% faster |
| Cycle time | 5.8 sec | 5.5 sec | 5% faster |
| Torque consistency | ±0.12 Nm | ±0.09 Nm | 25% better |
| Spare parts lead time | 4–6 weeks | 48 hours | 85–95% faster |
Customer comment: “At half the price, Meto’s mold performs slightly better on torque consistency. The risk paid off.”
Follow-on: Four additional cap molds + consignment spare parts agreement
Case Study 3: Blow Mold Export — Poland
Customer: Contract packaging company in Warsaw specializing in premium cosmetic bottles
Annual output: 15+ million bottles (50ml–500ml, small batches)
Previous suppliers: German and Italian blow mold makers
The Challenge:
The customer ran frequent changeovers (2–3 per shift) and had high surface finish requirements:
Long changeovers: 45–60 minutes between bottle sizes
Frequent repolishing: Every 300,000–400,000 cycles for high-gloss finish
High investment: Premium European molds were expensive for their small-batch economics
The Meto Solution:
Meto proposed a quick-change extrusion blow mold system with interchangeable cavity inserts:
| Feature | Specification |
|---|---|
| Bottle sizes | 50ml, 100ml, 250ml, 500ml (four cavity sets) |
| Cavities per mold | 4 |
| Steel (cavities) | 1.2083 (420 stainless) — high polishability, corrosion resistance |
| Steel (pinch-off) | 1.2767 + nitriding |
| Surface finish | Ra < 0.08μm (mirror polish) |
| Changeover | Quick-clamp inserts, no tools required |
Results after 6 months:
| Metric | Previous Molds | Meto System | Improvement |
|---|---|---|---|
| Changeover time | 45–60 min | 12 min | 76–80% faster |
| Surface finish (Ra) | 0.12–0.15μm | 0.07–0.08μm | 40–50% smoother |
| Repolishing interval | 350K cycles | 800K+ cycles | 2.3× longer |
| Total investment (4 sizes) | 4 complete molds | 1 base + 4 cavity sets | 35% lower |
| Flash rate | 1.2–1.5% | 0.6% | 50–60% reduction |
Customer comment: “Meto listened to our actual problem — changeover time — and designed a solution specifically for us.”
Follow-on: Two additional cavity sets + second quick-change system + refurbishment of existing molds
What These Case Studies Prove
| Theme | Vietnam (Preform) | Brazil (Cap) | Poland (Blow) |
|---|---|---|---|
| Primary problem | Weight variation, short life | High cost, long lead times | Frequent changeovers |
| Key Meto solution | Precision + nitriding | Cost + fast delivery | Quick-change + polishability |
| Measurable ROI | 71% less variation, 25% faster | 52% lower cost, 43% faster lead time | 76% faster changeover, 35% lower investment |
| Follow-on orders | Yes (3 molds) | Yes (4 molds) | Yes (2 cavity sets) |
All three customers continue to place repeat orders. All three have recommended Meto to other bottle packaging companies in their regions.
Why Global Customers Choose Meto
1. Precision with proof — Every mold ships with CMM reports, weight variation data, and thermal imaging. Customers verify the numbers themselves.
2. Steel and heat treatment that lasts — In-house vacuum heat treatment and optional nitriding extend mold life to 5–8 million cycles.
3. Support that doesn‘t stop — Remote troubleshooting via video call, 48-hour spare parts shipping, and on-site commissioning available.
4. Partnership pricing — Repeat customers receive reduced engineering fees, priority scheduling, and consignment spare parts options.
Conclusion
A bottler in Vietnam reduced weight variation by 71%. A bottler in Brazil cut mold costs by 52%. A packaging company in Poland reduced changeover time by 76%.
Different continents. Different mold types. Different challenges. One common choice: Meto.
If you need preform molds, bottle cap molds, or blow molds — Meto is ready to earn your trust.
